Task 1 – Lab Environment Overview

Before we start building and breaking things, let’s do a quick tour of the lab environment. This lab is designed to mirror a real-world DevSecOps workflow—just compressed into a couple of hours and fully pre-wired so you can focus on outcomes, not setup.

This task is about orientation, not configuration. The goal is to understand what each component does and how they work together before you touch anything.

VS Code Server and Cline Extension

This is your primary workspace throughout the lab.

• VS Code Server runs entirely in your browser—no local installs required.

• You will write code, edit files, and commit changes from here.

• The Cline extension adds AI-assisted coding using Gemini.

• This is where “vibe coding” happens—fast iteration, fast results.

What to notice:

• New files may be created automatically by Cline.

• Cline may open and use its own terminal, identifiable by the Cline icon.

• You are always working inside a real Git repository.

GitLab Server

GitLab is the backbone of the CI/CD workflow in this lab.

• It hosts the application source code.

• It runs the CI/CD pipelines that build, test, and deploy the app.

• It enforces security decisions declared as code.

• It provides visibility into why something passed or failed.

What to notice:

• Pipelines trigger automatically when you push code.

• Each stage has a clear purpose (policy, test, build, deploy).

• Failures are expected and intentional in this lab.

F5 Distributed Cloud vK8s

This is where your application actually runs.

• vK8s (Virtual Kubernetes) is a managed Kubernetes environment provided by F5 Distributed Cloud.

• You do not manage clusters, nodes, or upgrades.

• GitLab pipelines deploy your containerized application into vK8s.

What to notice:

• You never log into Kubernetes directly.

• Deployments are driven entirely by CI/CD.

• Application updates only occur after pipeline success.

F5 Distributed Cloud Load Balancer, WAAP, Bot Defense, and API Discovery

This is the runtime security layer in front of your application.

• The Load Balancer (LB) exposes your application to the internet.

• WAAP (WAF) inspects and blocks malicious web traffic.

• API Discovery learns and enforces expected API behavior.

• Bot Defense protects sensitive user-facing flows from automated abuse.

What to notice:

• All application traffic flows through this layer.

• Security controls are attached to the load balancer.

• Features are enabled or blocked based on policy-as-code.

• These controls are configured automatically using Terraform.

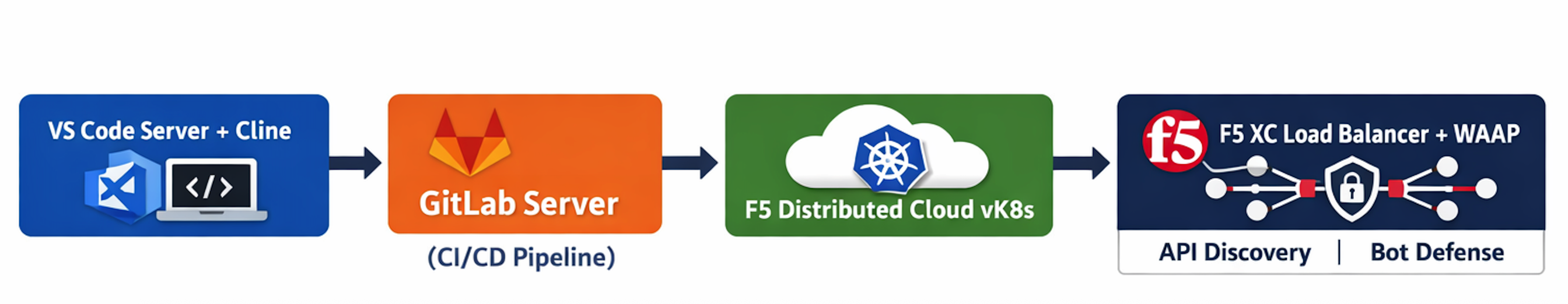

Lab Architecture at a Glance

Below is a simplified view of how the lab components fit together:

Wrap-Up

At this point, you should have a clear mental model of:

• Where you write code

• Where automation happens

• Where the app runs

• Where security is enforced

Next, you’ll validate access and start interacting with these components directly—moving from orientation to execution.

Welcome to Code. Secure. Repeat.
